Marine Grade - 1500mm Wide Spillway Water Wall Blade- 35mm Lip

(1 review) Write a Review
SKU:
WF-SW1500
Availability:
Leaves warehouse in 1-2 business days
Shipping:
Calculated at Checkout
  • Marine Grade Stainless Steel Water Blade Spillway - Suitable for swimming pool water wall
  • Marine Grade Stainless Steel Water Blade Spillway - Suitable for swimming pool water wall
  • Marine Grade Stainless Steel Water Blade Spillway - Suitable for swimming pool water wall
  • Marine Grade Stainless Steel Water Blade Spillway - Suitable for swimming pool water wall
  • Marine Grade - 1500mm Wide Spillway Water Wall Blade- 35mm Lip
  • Marine Grade - 1500mm Wide Spillway Water Wall Blade- 35mm Lip
  • Marine Grade Stainless Steel Water Blade Spillway - Suitable for swimming pool water wall
  • Stainless Steel Water Blade Spillway - Suitable for swimming pool water wall
  • Marine Grade - 1500mm Wide Spillway Water Wall Blade- 35mm Lip
  • Marine Grade Stainless Steel Water Blade Spillway - Suitable for swimming pool water wall
  • Marine Grade Stainless Steel Water Blade Spillway - Suitable for swimming pool water wall
  • Stainless Steel Water Blade Spillway - Suitable for swimming pool water wall

Preorder Sale expected dispatch 16th Jan 2025

RRP $699.00
$639.50
— You save $59.50
Frequently bought together:

Description

Luponds 1500mm Wide Stainless Steel Water Blade
A high quality marine 316 grade stainless steel waterwall spillway allows you to create a projecting curtain effect for any water wall application

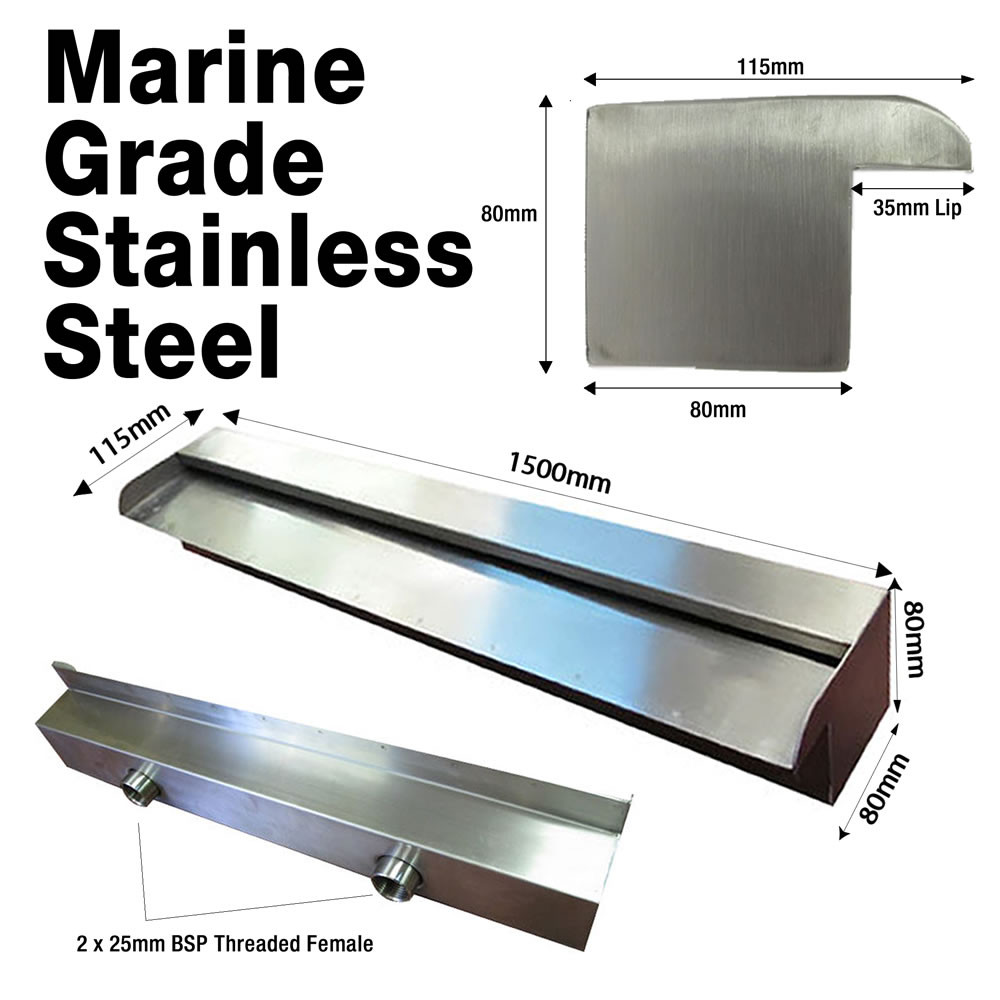

Features & Specification

Water Wall Blade:
  • Size: 1500mm Long x 80mm Wide x 80mm High
  • Lip: 35mm
  • Material: 316 Grade Stainless Steel
  • Inlet Size: 2 x 25mm Female Treaded
  • Inlet Entry: Bottom
  • Warranty: 1 year Limited Manufacturer warranty
  • General Install Guide Included
  • Note - Always read Instruction Manual thoroughly before installation

Types of Spillway Effects

  • Cascade/Wall Wash - This is achieved where water flows softly from the spillway and cascades down the wall face into a pond or reservoir. A minimum flow rate of 50-60 Litres per minute (l/min) at the height of the spillway per metre of spillway length.

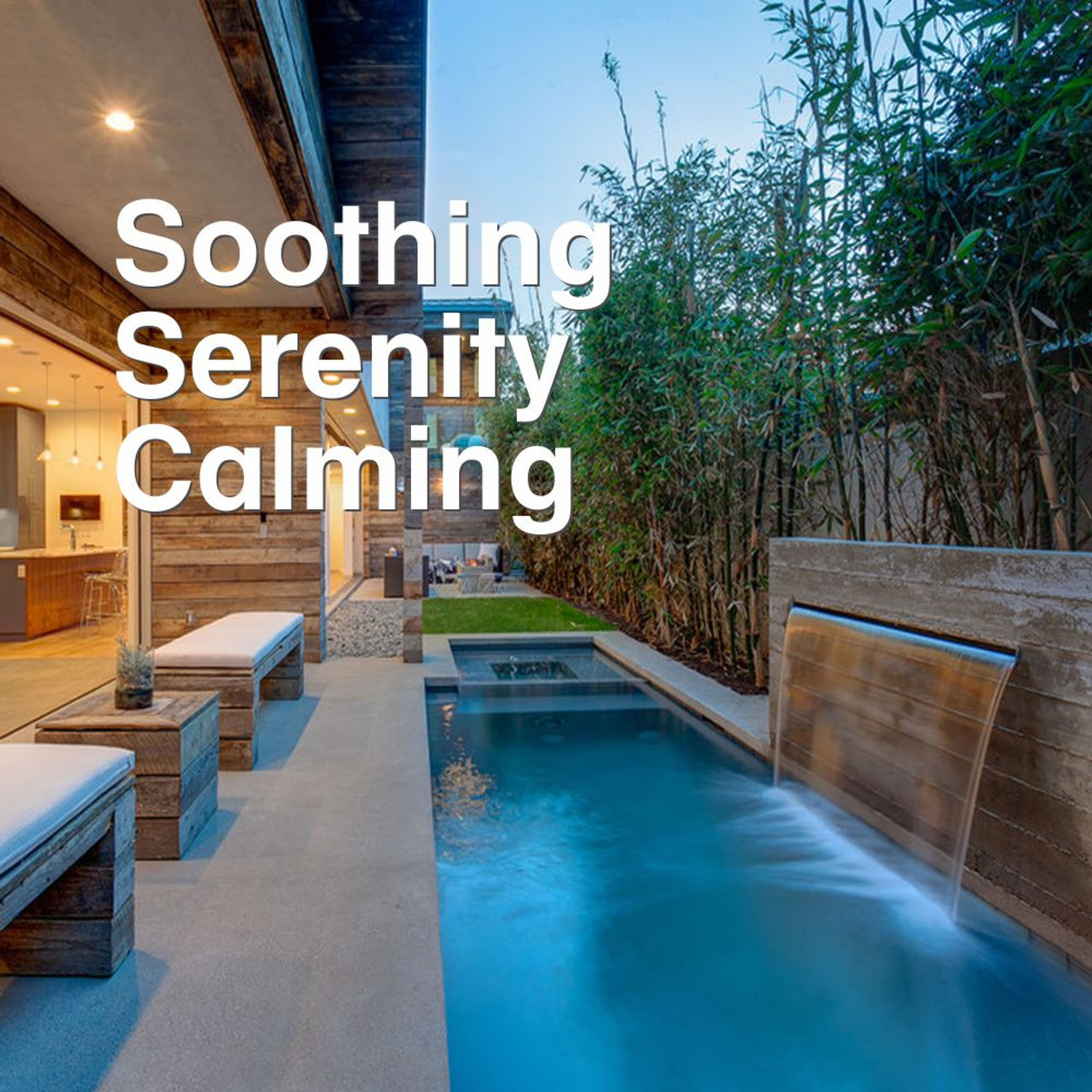

  • Projecting Curtain Sheet – This is achieved where a large volume of water passes through the spillway, producing a solid sheet of water that projects away from the wall. A minimum flow rate of 230 litres per minute (l/min) at the height of the spillway per metre of spillway length and the spillway installed no higher than 900mm from water level. Note - the further the water drops, the narrower the water sheet widths become due to surface tension. It’ll project between 80mm-200mm away from the lip – the final result depends on external factors, e.g. plumping, location and pump capacity.

Package Contents

1 x 1500mn Wide Marine Grade Stainless Steel Water Blade
1 x Install Guide
