Luponds PROJECTING EFFECT DIY Water Wall Kit

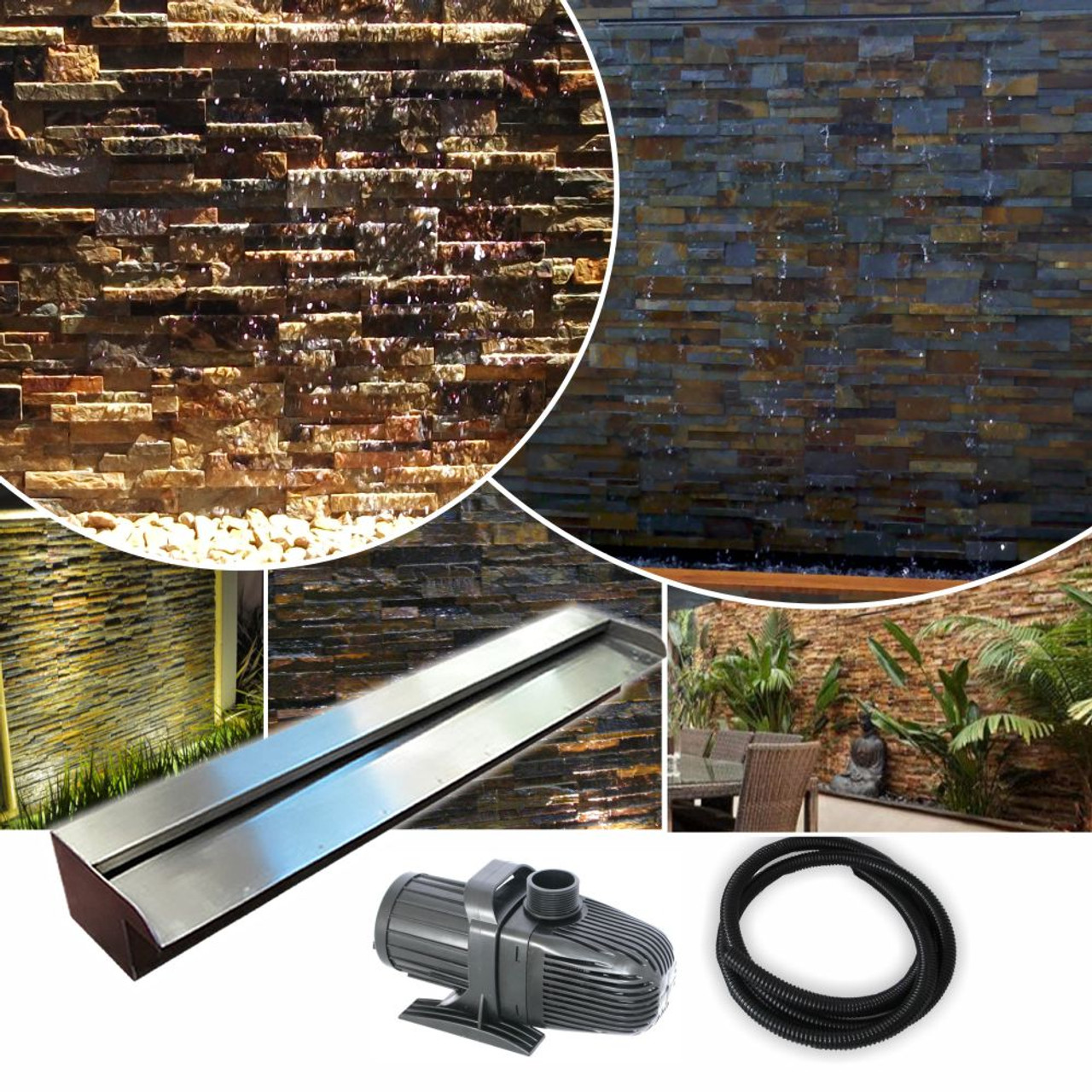

This bundled package comprising of a 304 grade stainless steel waterwall spillway, a high head height pump and associated fittings to allow you to create a PROJECTING EFFECT with this kit. It's easy to connect and perfect for DIYers!

Features:

  • 304 grade stainless steel water spillway blade ( for fresh water use only )
  • Weather resistance non kink grade hose
  • High quality durable fittings
  • Easy to install
  • High performance and high head height pump

Kit Includes:

  • Water Blade Spillway:
    • Size: (Available in 300mm, 600mm, 900mm, 1200mm, 1500mm Long) x 80mm Wide x 80mm High
    • Lip: 35mm
    • Material: 304 Grade Stainless Steel
    • Inlet Size: 1 x 25mm (300, 600, 900mm wide), 2 x 25mm(1200, 1500mm wide) Female Treaded
    • Inlet Entry: Bottom
    • Warranty: 1 year Limited Manufacturer warranty

  • Pump:
    For Spillway 300mm & 600mm
    • Dimensions: 220mmL x 120mmW x 130mmH
    • Power Input: 220-240 V/50 Hz
    • Pump Inlet/Outlet Size: 1 1/4" BSP Male thread (41.9mm OD),6supplied with 32mm, 25mm, 20mm tail.
    • Power Consumption: 50 Watts
    • Turnover Rate: 6500 LPH
    • Head of Water Max: 4.0 Metres
    • Connection Cable: 10 Metres
    • Warranty: 2 year limited Manufacturer warranty (Motor only)

  • For Spillway 900mm wide
    • Dimensions: 246mmL x 150mmW x 195mmH
    • Pump Inlet/Outlet Size: BSP threaded 38mm
    • Power Input: 220-240V - 50 Hz
    • Power Consumption: 130 Watts
    • Turnover Rate: 13000 LPH
    • Head of Water Max: 5.0 Metres
    • Power Cable: 10 Metres
    • Warranty: 2 yrs Manufacturer warranty (excl. wearing parts), 1 year if dry install.

   For Spillway  1200mm & 1500mm wide

    • Dimensions: 250mmL x 150mmW x 210mmH
    • Power Input: 220-240 V/50 Hz
    • Power Consumption: 660 Watts
    • Turnover Rate: 30000 LPH
    • Head of Water Max: 8.0 Metres
    • Connection Cable: 10 Metres
    • Warranty: 2 yrs Manufacturer warranty (Motor only), 1 year if dry install.

  • Hose: Commercial grade non kink weather resistance flex PVC hose
  • For Spillway size 300mm, 600mm & 900mm wide
    • 3 metre - 25mm (1 inch) inner diameter

   For Spillway size 1200mm & 1500mm wide

    • 2 metre - 25mm (1 inch) inner diameter
    • 2 metre - 38mm (1.5 inch) inner diameter
  • Connection Kit: Hose fittings, 1 x Tee Connection Kit(for 1200,1500mm wide), 1 x Back Flow Controller Kit(Optional), 1 x Wall Tank Fitting (Optional)
  • General Install Guide Included

Optional LED lighting available

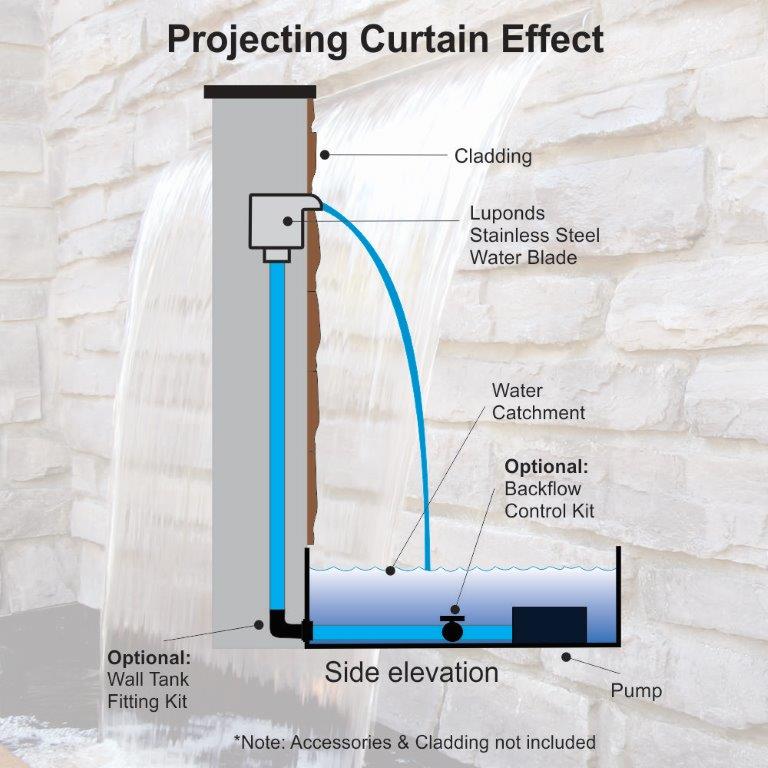

 *Note - As a guide the Spillway should be installed no higher than 900mm from water level. The further the water drops, the narrower the water sheet widths become due to surface tension. The projection from the wall is approximately 80 -200mm. The final result vaires depending on setup.

Optional LED lighting & Catchment Trough available for selections.
