OASE BioTec ScreenMatic² 60000

• Clear and healthy pond water with minimum maintenance requirements
• Particularly long service life thanks to automatic coarse debris extraction before it enters into the filter
• Continuous belt filter at an affordable price

What are the benefits of a Oase Biotec Screenmatic Pond Filter System?

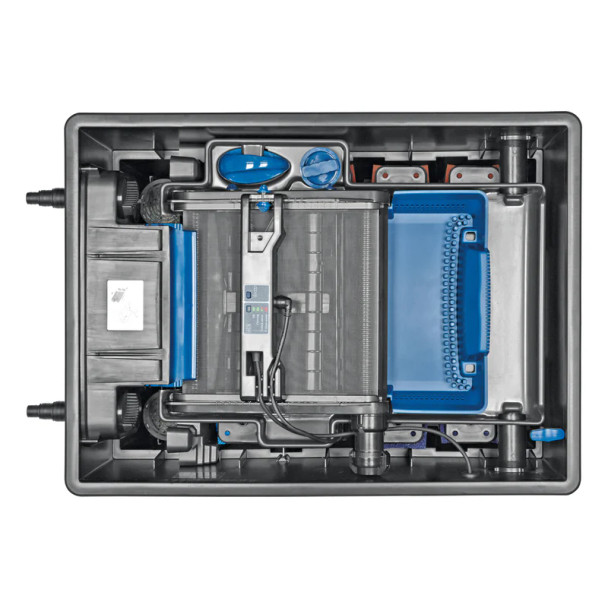

The OASE BioTec ScreenMatic² is an intelligent, flow-through pond filter that provides automated mechanical waste removal and biological filtration. The water enters the filter via a flow spreader onto a fabric belt which strains out solid waste particles. When sufficiently soiled, a sensor engages the motor which performs a cleaning cycle, transferring the accumulated waste into a collection tray below the screen.

The control display also allows instant cleaning cycles at the press of a button. The waste sensor can be adjusted backward and forward to alter cleaning regularity based on waste accumulation. A cleaning brush is supplied to keep the fabric screen free of entrapped dirt.

After mechanical straining, water enters the the biological media, a series of large filter sponges differing in coarseness. The blue foams are rough, violet are medium fine and red are very fine grade.

These sponges provide an abundance of surface housing for aerobic bacteria to populate and breakdown soluble waste pollutants. Cleaning the foams is made easy by the compression handle used to push down on the foams to release any build up of organic waste. Water is then directed through cartridges containing 2.5kg of granulate media (zeolite) which bind unwanted nutrients and trace ammonia before returning water to the pond.

Download Instructions

Key Features:

• Clear and healthy pond water with minimum maintenance requirements
• Particularly long service life thanks to automatic coarse debris extraction before it enters into the filter
• Continuous belt filter at an affordable price

Characteristic:

• GUARANTEED: Includes OASE clear water guarantee

• LOW MAINTENANCE: Coarse dirt is removed before it enters the filter

• SELF-CLEANING: The filter belt is automatically driven; adjustable automatic cleaning system, which controls the belt run based on the degree of contamination, including LED function check

• CONVENIENT: Filter sponges can be cleaned directly in the filter

• CLEAN AND TIDY: Bottom drain with slide to remove dirt from the filter system

• SMART COMBO: Different filter media for optimal development of filter biology

• EXTRA FOR THREAD ALGAE: Use of PhosLess filter cartridges for reducing thread algae (optional accessory)

• SUITABLE PUMPS: Optimally matched to OASE AquaMax Eco filter pumps

• GOOD PARTNERS: Direct connection option for UVC Bitron C and Eco clarifiers

• DOESN'T CLOG: Uniform water distribution on the filter belt

• PRACTICAL: Large-volume dirt basket with easy cleaning
