OASE

Oase Filtoclear 31000 Pond Pressure Filter

(No reviews yet) Write a Review
SKU:
WF-FILTER-03OP013
Availability:
Online Only - Leaves warehouse in 2-3 business days
Shipping:
Calculated at Checkout
  • Oase Filtoclear 31000 Pond Pressure Filter
  • Oase Filtoclear 31000 Pond Pressure Filter
  • Oase Filtoclear 31000 Pond Pressure Filter
  • Oase Filtoclear 31000 Pond Pressure Filter
  • Oase Filtoclear 31000 Pond Pressure Filter
  • Oase Filtoclear 31000 Pond Pressure Filter
  • Oase Filtoclear 31000 Pond Pressure Filter
RRP $1,459.00
$1,395.00
— You save $64.00
Frequently bought together:

Description

The clear water expert: Pressure filter with first-class filter performance and special functions, available either individually or as a set with matching pump. Clear water guarantee: effective nutrient decomposition thanks to large filter surface and integrated UVC clarifier for the removal of pathogens, floating algae and turbidity. All operating elements are integrated in the cover. This allows the filter to be sunk into the ground at ground level and blends harmoniously into any garden landscape. Practical: Cleaning takes place from the outside without opening the lid, suitable for ponds up to 31000 l.

Features & Specification

  • Effective clear water through the perfect combination of filter system and UVC technology
  • Simple handling and convenient, patented cleaning mechanism
  • Can be perfectly integrated into the natural pond landscape
  • POND FILTER: Patented cleaning mechanism with optimised filter sponges
  • CONVENIENT: Easy to maintain and clean thanks to simple handle mechanism
  • EASY LAMP CHANGE: The UV lamp can be changed while the unit is running - no need to switch off the filter, no need to dismantle the quartz glass
  • PROTECTED: The high-quality UVC housing protects the ballast unit from sunlight and moisture
  • POWERFUL: All latest generation FiltoClear models feature upgraded, highly effective UV lamps
  • 2-WAY VALVE: Choose whether the water flows into the pond or into the waste water after cleaning the filter
  • IMPROVED EFFICIENCY: The built-in OASE bypass technology ensures optimum water flow and prevents the filter from clogging
  • STABLE AND ROBUST: The hard-wearing housing made of high-quality plastic can be easily buried in the ground and impresses with its long durability
  • UNDER PRESSURE: The metal clamping ring with simple lever function makes opening and closing a FiltoClear safer and easier than ever before



TECHNICAL DATA

Dimensions (Ø x H)

mm 380 x 728

Rated voltage

  220 - 240 V / 50/60 Hz

Power consumption

W 60

Power cable length

m 5.00

Net weight

kg 10.30

Guarantee (+ request guarantee)

Years 2 + 1

UVC power

W 60

Number of blue filter foams

Units 2

Number of red filter foams

Units 2

Number of purple filter foams

Units 1

Inlet connections

mm 38 / 50

Inlet connections

  1 ½", 2"

Connections, outlet

mm 38 / 50

Outlet connections

  1 ½", 2"

Connections, sludge discharge

mm 38 / 50

Sludge discharge connections

  1 ½", 2"

Max. flow rate

l/h 17000

Max. operating pressure

bar 0.2

Suitable for ponds up to max.

m3 31.0

Suitable for ponds with fish stock

m3 15.0

Suitable for ponds with koi

m3 7.5

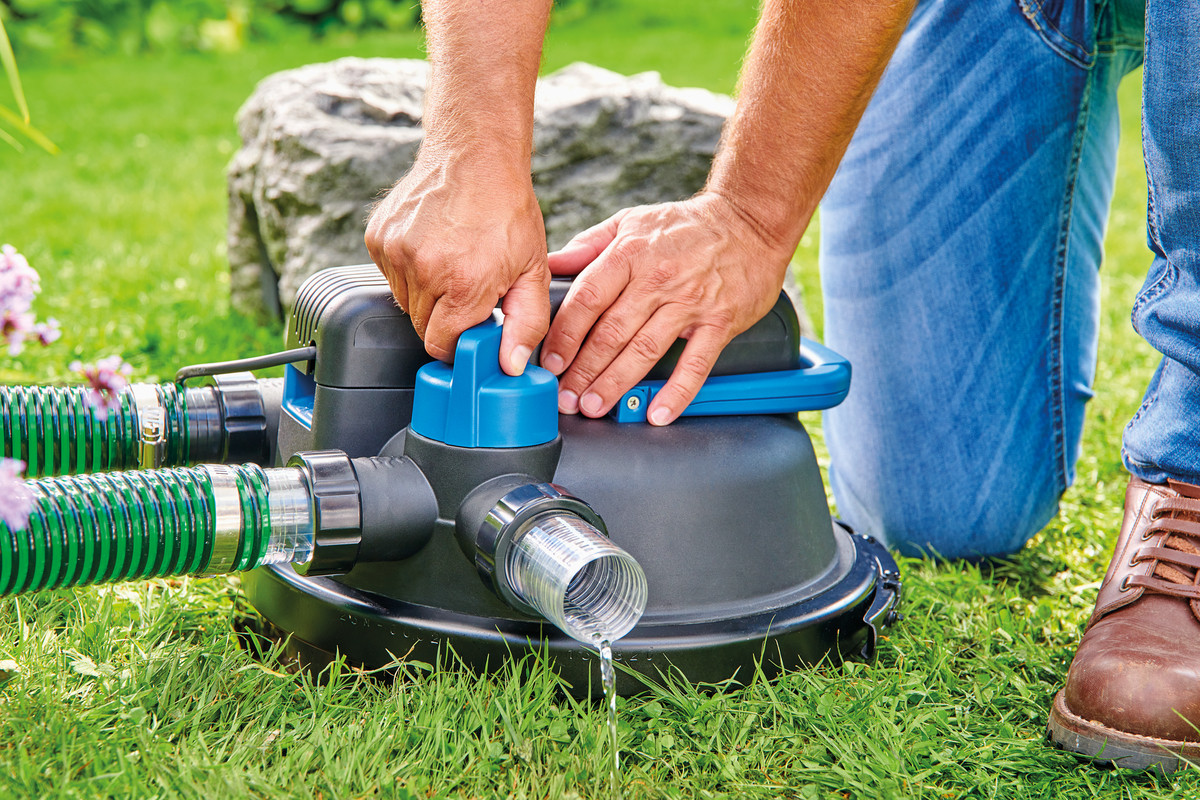

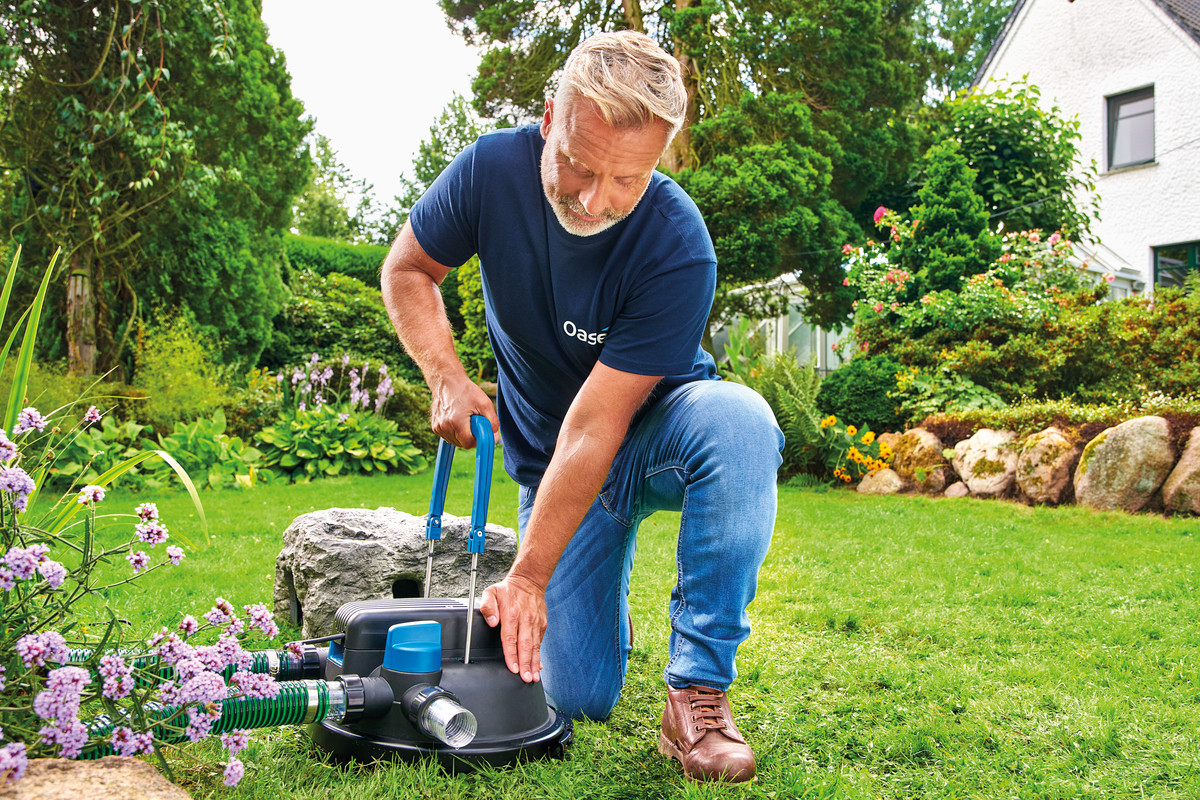

Convenient cleaning
Filter sponges can be cleaned quickly and easily using the patented pull-out mechanism.


Targeted draining of dirty water
The dirty water is drained from the cleaned filter sponges via the two-way valve, for example into a flower bed.

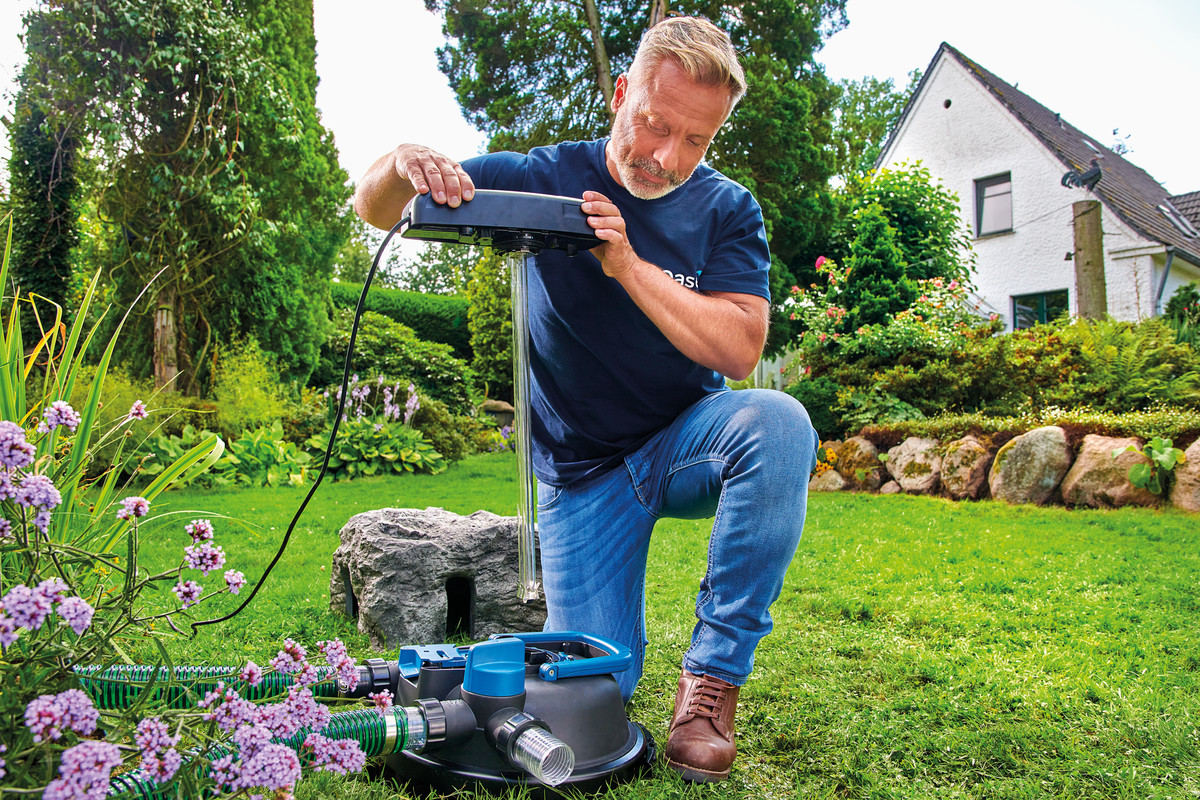

Simple lamp replacement
The UV housing can easily be removed during operation for replacing the integrated UV lamp.

Smart installation of the filter
The filter can be buried in the ground and optimally integrated into the natural environment. All important elements are easily accessible via the removable filter head.
